L J FLOOD Spearfish C Eagle 90 Transmission
L J FLOOD Spearfish C Eagle 90 Transmission
Couldn't load pickup availability

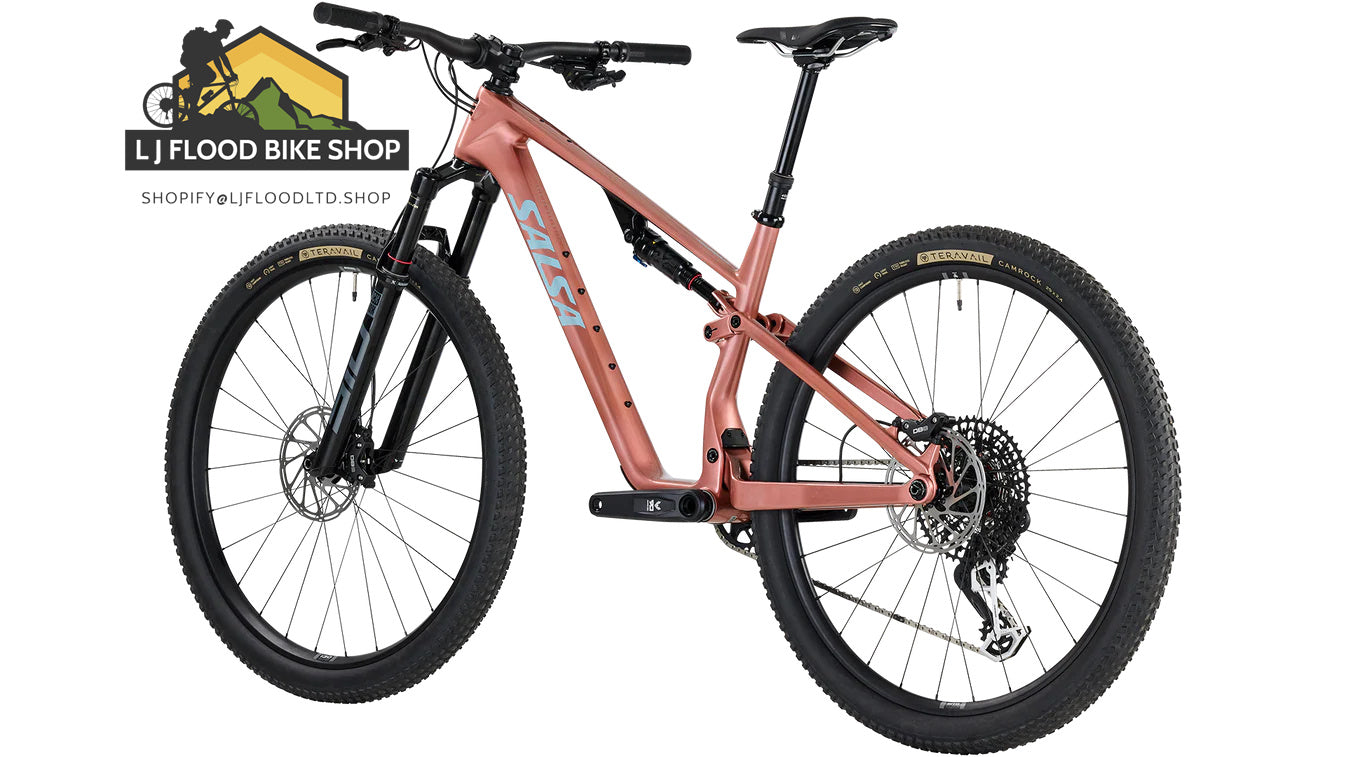

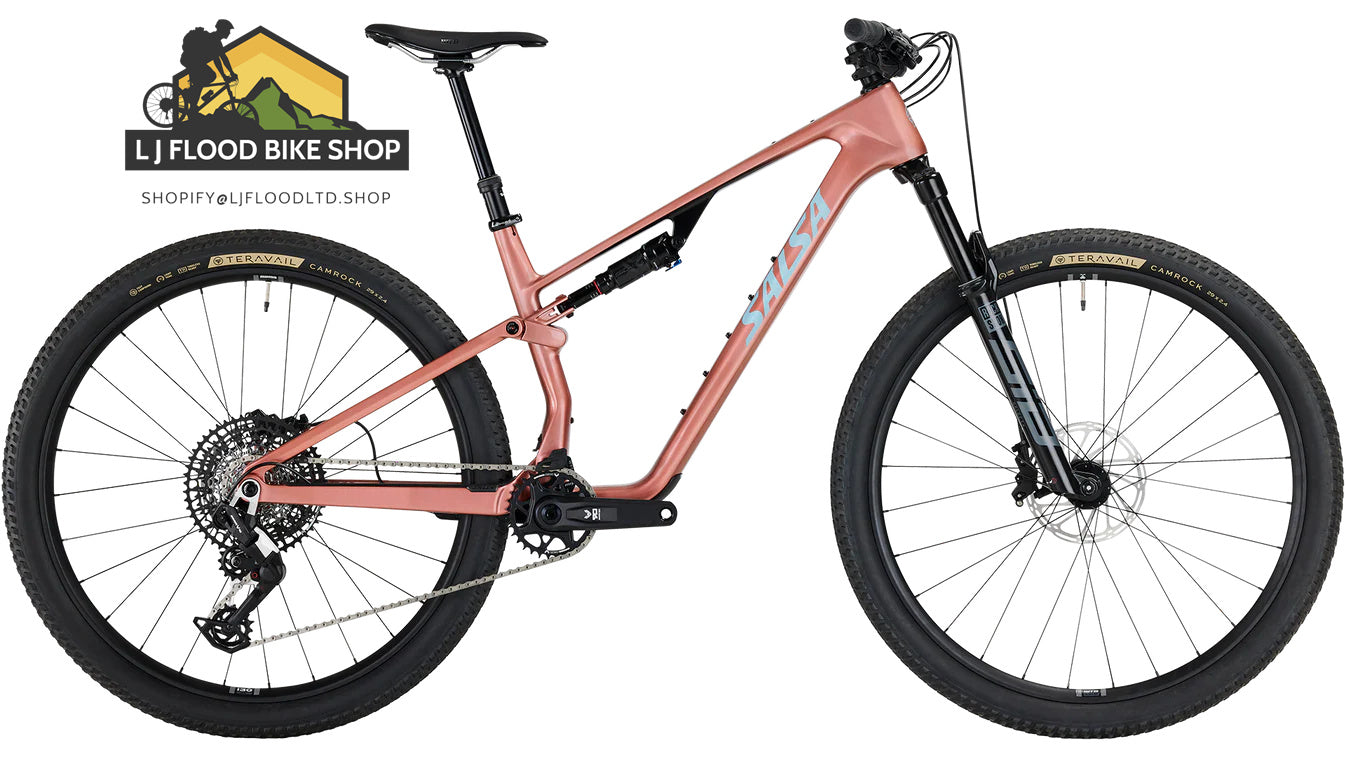

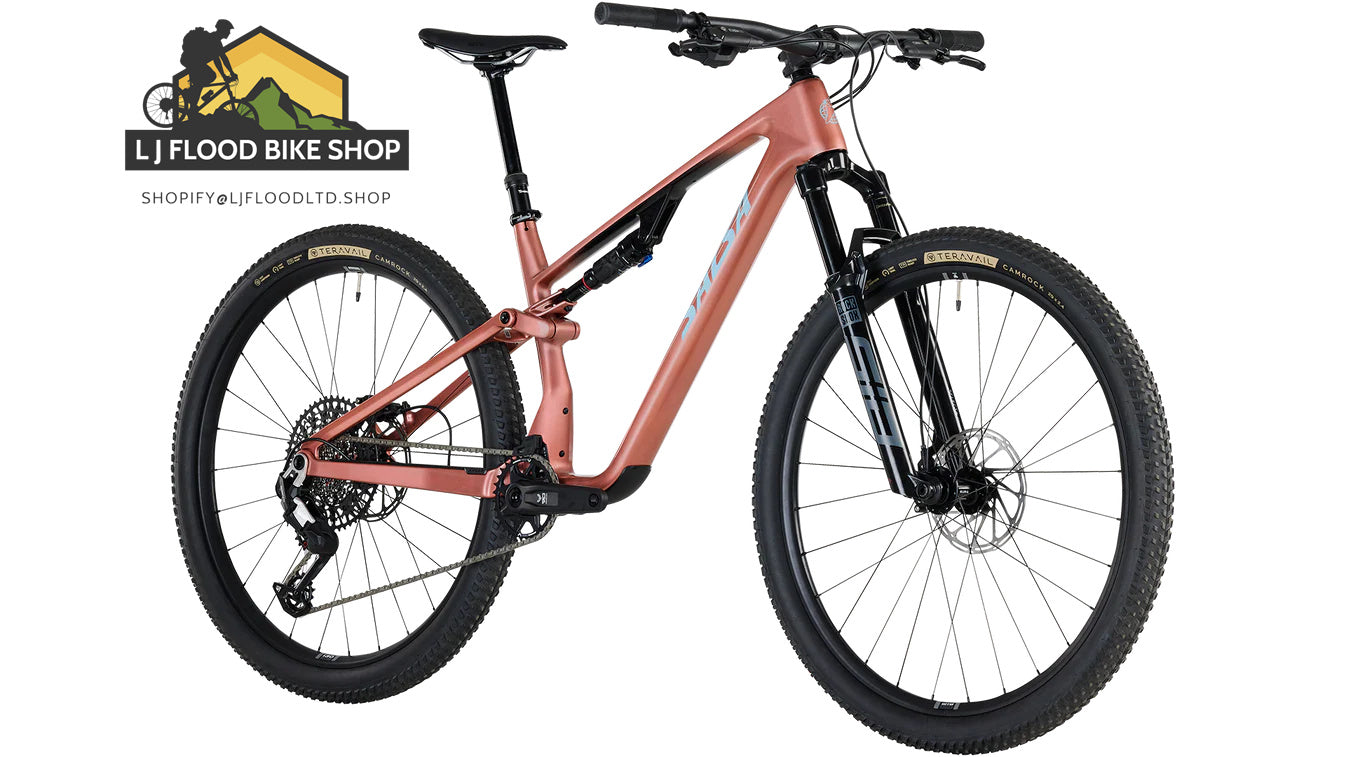

Spearfish also features on-bike cargo mounts so you can carry two bottles (up to three on MD–XL frames), your multitool, tube, and more for fewer resupply stops. SRAM’s Eagle 90 Transmission shifting blends electronic precision and Full Mount derailleur durability for a drivetrain you can trust. Spearfish C Eagle 90 is a carbon XC bike built to make your monumental efforts more manageable.
Frame
Spearfish Carbon
Color
Dusty Rose
Suspension Fork
RockShox SID Select+ 2-position, 120mm
Rear Shock
RockShox SIDLuxe Select+
Components
Headset
FSA Orbit 1.5E ZS NO.57E
Seatpost
TranzX YSI08 RAD+ Dropper Post w/ GL Stealth MMX Lever, XS: 125mm travel; SM–MD: 150mm travel; LG–XL: 170mm travel
Stem
Salsa 35.0 Guide Trail, 50mm
Grips/Bar Tape
WTB Wavelength Lock-On
Saddle
WTB Silverado, Medium, Cromoly, DNAx
Handlebar
Race Face Aeffect
Drivetrain
Front Derailleur
N/A
Rear Derailleur
SRAM Eagle 90 Transmission
Cassette
SRAM GX Eagle Transmission XS-1275, 10-52t, 12-speed
Chain
SRAM Eagle 70 Transmisssion Flattop
Crankset
SRAM Eagle 90, 32t w/MRP 1x SL TR2 28-34t Direct Mount Guide
Shifter
SRAM Eagle 90, MatchMaker X Clamp
Brake Levers
SRAM DB8 Stealth
Brake Calipers
SRAM DB8 Stealth
Bottom Bracket
SRAM DUB PF92 MTB Wide
Rotors
SRAM CenterLine2.0 (6-bolt, 180mm front and rear)
Wheels
Front Tire
Teravail Camrock 29x2.4", Light Trail casing, WTB TCS Sealant included
Rear Tire
Teravail Camrock 29x2.4", Light Trail casing, WTB TCS Sealant included
Front Hub
WTB Frequency Sport 15x110mm
Rear Hub
WTB Frequency Boost 12x148mm
Spoke
Double-butted Pillar Stainless Steel, black
Rim
WTB ASYM i30 TCS, 28h
Weight
Complete Bike
28lb 14oz
| Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| A. Effective Top Tube | 567.8- 568.6 | 584.9- 585.7 | 606.9- 607.7 | 629.0- 629.8 | 651.1- 651.9 |
| B. Stand Over | 719.1- 716.4 | 719.2- 716.3 | 719.2- 716.3 | 719.3- 716.2 | 719.3- 716.2 |
| C. Reach | 435.0- 431.4 | 450.0- 446.5 | 470.0- 466.5 | 490.0- 486.4 | 510.0- 506.5 |
| D. Stack | 589.3- 591.9 | 598.4- 601.1 | 607.6- 610.3 | 616.7- 619.6 | 625.9- 628.8 |
| E. Total Seat Tube Length | 380.0 | 405.0 | 430.0 | 455.0 | 480.0 |
| F. Headtube Length | 95.0 | 105.0 | 115.0 | 125.0 | 130.0 |
| G. Headtube Angle |
66.3
-
66.0
|
66.3
-
66.0
|
66.3
-
66.0
|
66.3
-
66.0
|
66.3
-
66.0
|
| H. Seat Tube Angle |
77.3
-
77.0
|
77.3
-
77.0
|
77.3
-
77.0
|
77.3
-
77.0
|
77.3
-
77.0
|
| I. BB Drop | 31.0- 35.4 | 31.0- 35.5 | 31.0- 35.5 | 31.0- 35.6 | 31.0- 35.6 |
| J. BB Height | 342.0- 337.6 | 342.0- 337.5 | 342.0- 337.5 | 342.0- 337.4 | 342.0- 337.4 |
| K. Chainstay Length | 430.0- 431.2 | 430.0- 431.2 | 430.0- 431.2 | 430.0- 431.2 | 430.0- 431.2 |
| L. Fork Length Axle to Crown | 530.0 | 530.0 | 530.0 | 530.0 | 530.0 |
| M. Fork Offset | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 |
| N. Wheelbase | 1157.0- 1157.7 | 1176.1- 1176.7 | 1200.0- 1200.7 | 1224.1- 1224.7 | 1248.1- 1248.7 |
| Crank Arm Length | 165.0 | 165.0 | 165.0 | 170.0 | 170.0 |
| Handlebar Width | 760.0 | 760.0 | 800.0 | 800.0 | 800.0 |
| Recommended Rider Height | 146.0 - 159.0 | 157.0 - 170.0 | 168.0 - 180.0 | 178.0 - 191.0 | 188.0 |
| Stem Length | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 |
Measurements based on:
- an unsprung bike (no sag)
- a 29 x 2.4" tire measuring 746mm in diameter
- Standover is measured from vertically from ground to top of top tube 50mm forward of bottom bracket center
- Note: Where two measurements are listed, the first number is with Flip Chip in default High position; the second number is with Flip Chip in Low position
